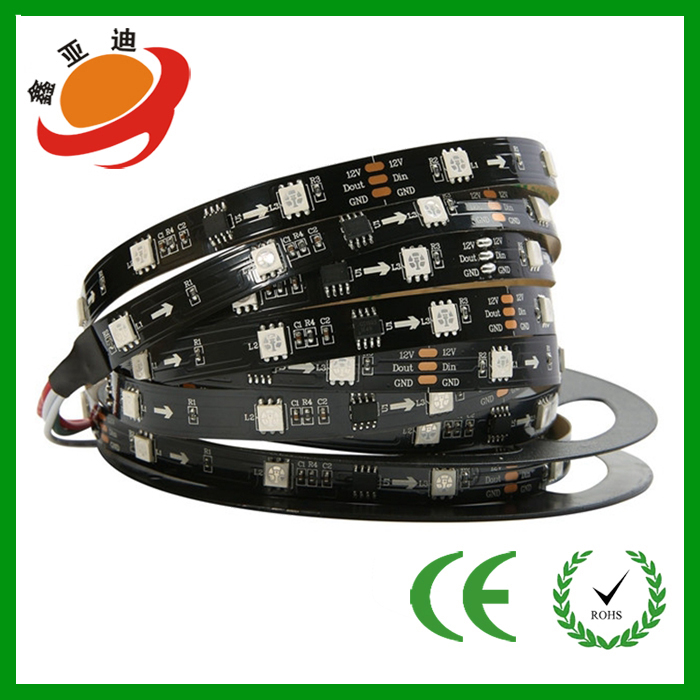

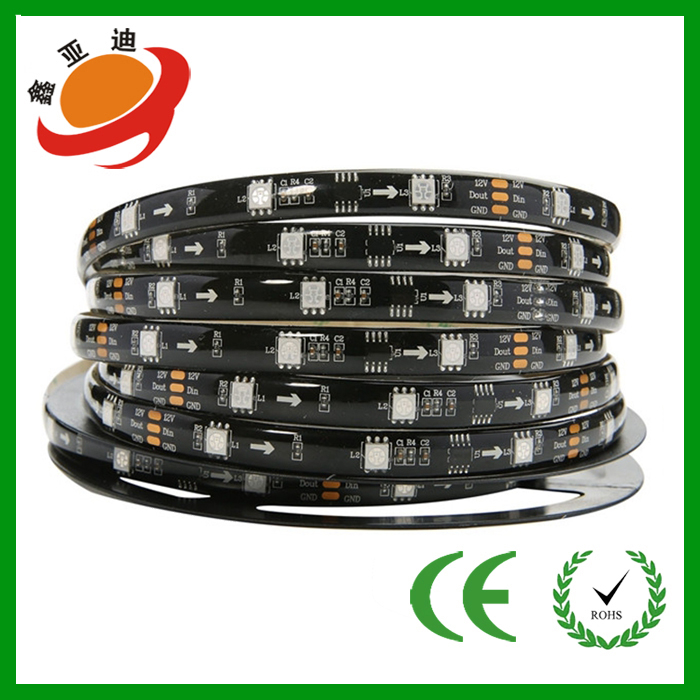

1,Control IC UCS1903  inserted in 5050 RGB LED diode,RGB 3 in one led lamp,supporting numerous color-change effects.

2,White PCB and black PCB optional.

3,It comes in 5 meters per reel with 3 pin female/male

 JST SM connector on both end separated power/groud wires,customized length is workable.

4,Flexible PCB material,each 3LED can be cut,there is cut lines every 5cm.

5,60 LEDs/M,12V low voltage inputted,don't over 13V,otherwise you will destroy the entire strip.

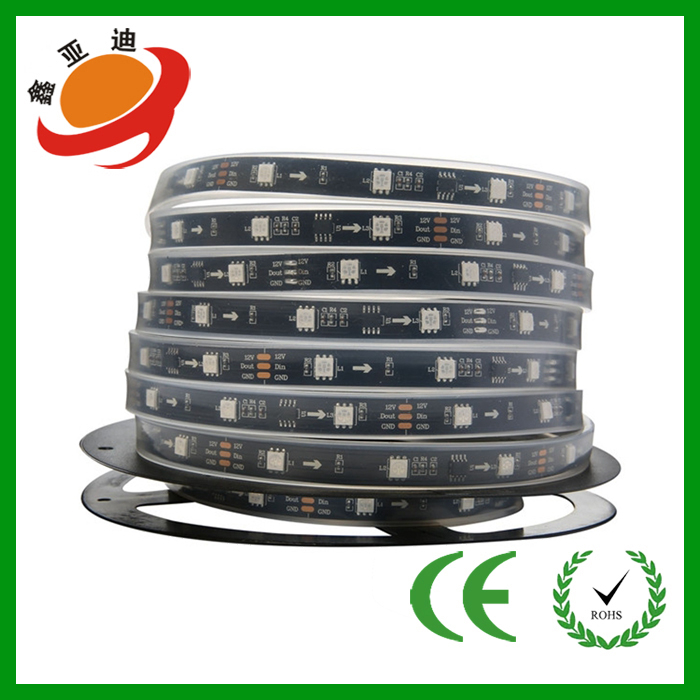

6,10mm width PCB, with 3M tape back side for non-waterproof version.12mm width with silicon tube for waterproof type.

7,It is only date pin for signal transfer,no clock pin.

Parameter
